Air valves serve a critical purpose in pressurized pipelines. They automatically release trapped
air and admit air during filling, draining, and normal system operation. Because air valves are open to the atmosphere during operation, they create a critical vulnerability when vaults flood or installations are submerged. During a negative pressure event, outside water can be drawn into the pipeline, carrying bacteria, sediment, debris, or chemical contaminants. That makes vault flooding a serious operational and contamination threat not only for drinking water systems, but for any application where cross-contamination, system integrity, and reliable performance matter.

An inflow preventer is designed to block liquid water from entering the pipeline while still allowing the free movement of air. Installed on an air valve or integrated into the valve assembly, it provides essential protection during flooding or submergence events. With primary and secondary checks, this type of device stops contaminated floodwater from reaching the air valve and pipeline. The result is stronger contamination control, reduced risk during draining events or pump shutdowns, and more reliable performance across potable, non-potable, reclaimed, and other pressurized pipeline systems.

Industry standards reinforce the importance of inflow prevention in potable water applications. Performance and safety expectations address the need to allow air release and air admission while helping prevent contaminated water from entering during submergence or tampering. Design expectations also include features such as redundant checks, an outlet basket, and field-test capability.

For utilities and operators concerned about flooding around air valve installations, the Val-Matic FloodSafe® inflow preventer provides essential protection. It can be installed in conjunction with an air valve or integrated with a vent pipe, helping protect a wide range of pipeline systems from environmental contamination without sacrificing the air-handling performance those systems depend on.

The FloodSafe® is built to support cross-contamination control across a wide range of systems while remaining adaptable to existing air valve installations. Its dual-chamber design adds redundancy, with an upper chamber that serves as backup protection. Dual float checks are designed for rapid closure when fluid enters the chamber, while resilient seats support drop-tight closure at low pressures. Additional features such as independent test ports, a protective basket screen, and a cover port sized for full venting capacity round out a design focused on both safety and functionality. For ongoing verification, an optional field-test kit is also available.

The Val-Matic FloodSafe® inflow preventer is available in sizes from 1 to 16 inches and is piped to an outlet for an air valve. The product is manufactured under a certified ISO 9001 quality system and is identified as NSF 372-certified lead-free, with NSF 61-approved fusion-bonded epoxy. It also meets AWWA C514-15 requirements. These certifications signal compliance with potable‑water safety expectations.

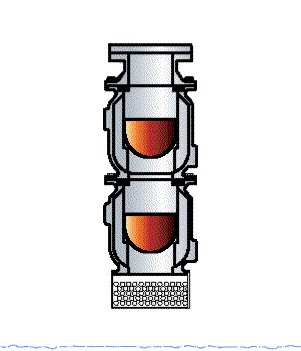

The FloodSafe® is piped to the outlet of an air release valve, air and vacuum valve, combination air valve, or vent. In a flooded vault or submerged condition, rising water causes the lower chamber float check to rise and help block contaminated water from moving farther into the system. If water passes the lower chamber seat, the upper chamber provides backup protection in a manner similar to a backflow prevention concept. This layered response is critical in installations where flooding could quickly compromise cleanliness, performance, or compliance. Under normal conditions, the device still allows the full venting capacity required for system performance.

Wherever air valve vault flooding is possible, inflow prevention should be treated as a critical safeguard rather than a secondary accessory. A solution such as the Val-Matic FloodSafe® inflow preventer helps protect against contamination events, preserve system integrity, support compliance goals in potable-water applications, and reduce risk across a wide range of pipeline systems. Learn more about this solution by contacting us or by taking the Val-Matic FloodSafe Inflow Preventer Val-Matic University (VMU) course.
